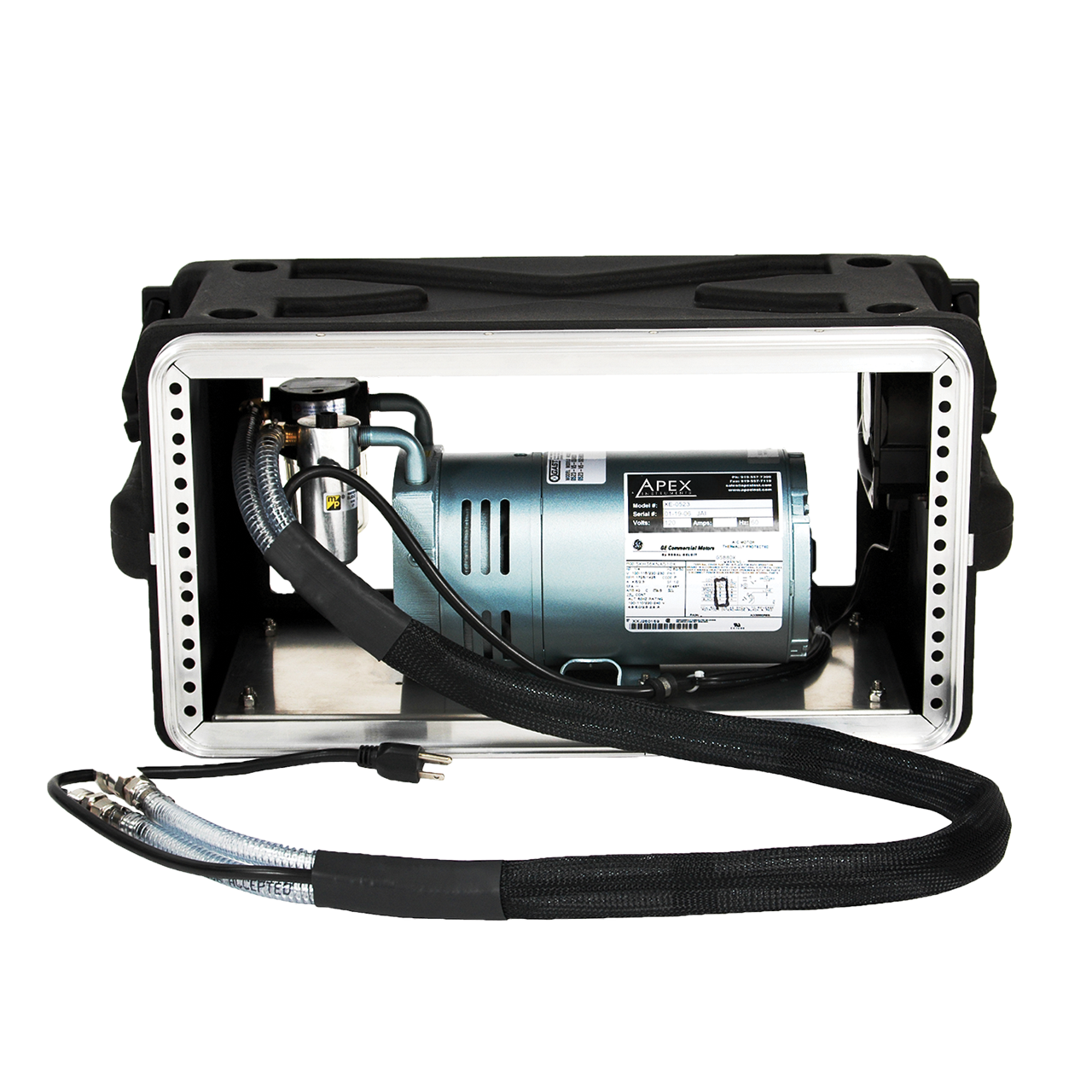

0523 Gas Sampling Pump 0523 Gas Sampling Pump SKU: 0523 Gas Sampling Pump Description
Apex’s Method 5 Pump Assembly has a plethora of useful features for an isokinetic sampler. The Lubricated Rotary Vane Pump includes a 4-foot power cord and two kink-free hoses with non-reversible quick connects. The pump is mounted in our rugged and lightweight roto-molded low-density polyethylene (LLDPE/LMDE) case with removable covers providing easy access for service, and is also available in an open-fram case for more accesbility. The wick style lubricator requires less maintenance than other lubricator systems.
Features:
XE-0523 sample pump mounted in our rugged and lightweight roto-molded low-density polyethylene (LLDPE/LMDE) case with two molded-in ergonomic carrying handles
E-0523 sample pump mounted in an open-frame case
XC-522/XC-572/XC-572-D/XC-5000 120V/240V console recommended pump accessory
Optional XF-05HW pump frame – handle assembly, black tubular steel with 8-inch wheels
Specifications:
Motor: 1/4 hp, 120VAC at 60 Hz 4.6 Amp, RPM 1725
Option “V”: 240VAC at 50 Hz 2.3. Amp, RPM 1425
Measured Flow: 3.1 CFM at 1 inHg; 1.5 CFM at 15 inHg
Maximum Vacuum: 25.5 inHg
Weight: XE-0523 44 lbs, (20 kg)/ E-0523 35lbs., (16kg)
Code: SKU: 0523 Gas Sampling Pump
Description
Apex’s Method 5 Pump Assembly has a plethora of useful features for an isokinetic sampler. The Lubricated Rotary Van...
ACC-1610 ACC-1610 SKU: ACC-1610
Complete Glassware Kit Complete Glassware Kit SKU: Complete Glassware Kit
Code: SKU: Complete Glassware Kit
DGM Reference Meter DGM Reference Meter SKU: DGM Reference Meter Description
***A 15-point calibration is sold separately.***
The DGM-SK25R reference meter may also be used to audit any of our mercury consoles. The reference meter connects to the console via an integrated hose which includes a thermocouple for monitoring temperature. Vacuum is controlled by means of a panel-mounted ball valve. All components are contained in an easy-to-carry transport case.
Code: SKU: DGM Reference Meter
Description
***A 15-point calibration is sold separately.***
The DGM-SK25R reference meter may also be used to audit any of our mercury cons...
Dilution Panel Dilution Panel SKU: N/A Description
Features:
High accuracy
High-resolution regulation
Blow-back control
Calibration circuit
Specifications:
Application in-situ type probes
Remote (dry contract) for calibration and blowback
Sample, bypass and calibration gas rotometers
Precision air pressure regulator
4 U (19 in W x 7 in H)) case rack-mountable (20 lbs)
Front panel air pressure, vacuum and blowback gauges
110/220 VAC
Code: SKU: N/A
Description
Features:
High accuracy
High-resolution regulation
Blow-back control
Calibration circuit...
EI-838 Pump EI-838 Pump SKU: EI-838 Pump Description
The Ei-838 External Sampling Pump is our newest and lightest pump yet. The diaphragm pump is German-engineered and American-made. The lightweight and compact makes it easy to use and easy to transport.
Features
• German-engineered, American-made diaphragm pump
• Lightweight and compact design
• Compatible with all Apex Instruments sampling equipment
• Easy to attach, self-sealing EPDM tubing
• Durable polypropylene shell
Specifications
• Motor: 24 BLDC (Brushless DC) KNF 838 Motor
• Measured Flow: 70 LPM (2.5 CFM) at free flow, 21 LPM (0.75 CFM) at 15 inHg
• Maximum Vacuum: 25.5 inHg
• Weight: 16 lbs, (7.25 kg)
• Special Back Half Leak Check Consideration: for metering systems having diaphragm pumps, the normal leak-check procedure will not detect leakages within the pump. Please refer to our website for the recommended leak-check procedure.
Code: SKU: EI-838 Pump
Description
The Ei-838 External Sampling Pump is our newest and lightest pump yet. The diaphragm pump is German-engineered and American-made. The...
Gas Distribution Panel Gas Distribution Panel SKU: N/A Description
The Apex AFD-510 Gas Distribution Panel (formally called Flow Drawer) is designed to be an easy, convenient, and compact way to control the flow of both stack and calibration gases. This new panel can flow gas to either the analyzer bank (direct calibrations) or the probe (system calibrations), and has both automatic and manual controls. This unit has been designed with simplicity in mind. It has the same common solenoids and a simplified wiring protocol. The calibration gas in use is identified by a LED along with which mode you are in and if you are sampling or calibrating. During sampling mode all solenoids are at rest”, greatly extending the life of the unit.
Features:
11 calibration gas channels (including zero and span)
5 output or analyzer channels
8 valved rotometers for fine flow control and adjustment
5 analyzer rotometers
1 vent rotometer
1 probe calibration
1 sample flow rotometer
19-inch rack-mountable
Designed for easy maintenance and repair
Manual or automatic operation
Specifications:
Input cal-gas channels:
Flowmeter standard:
Sample 0-10 LPM
Vent 0-10 LPM
Output gas channels:
Flowmeter:
0.2-2.5 LPM
Voltage: 110.220 VAC at 50/60 Hz
Power: 25 Watts
Mounting dimensions: 4U, 19-inch rack-mount, 7-inch height x 19-inch width x 18-inch depth
Weight: approximately 24 lbs
Pressure gauge: 0-15 psi
Connections: 1/4 inch stainless steel tube union
Code: SKU: N/A
Description
The Apex AFD-510 Gas Distribution Panel (formally called Flow Drawer) is designed to be an easy, convenient, and compact way to control...
GP-0523 GP-0523 SKU: GP-0523 Description
Gast model 0523 lubricated vane replacement pump (120 V at 60 Hz or 240 V at 50 Hz)
Code: SKU: GP-0523
Description
Gast model 0523 lubricated vane replacement pump (120 V at 60 Hz or 240 V at 50 Hz)...
HGB-93CFM HGB-93CFM SKU: HGB-93CFM
Impinger Case Impinger Case SKU: Impinger Case

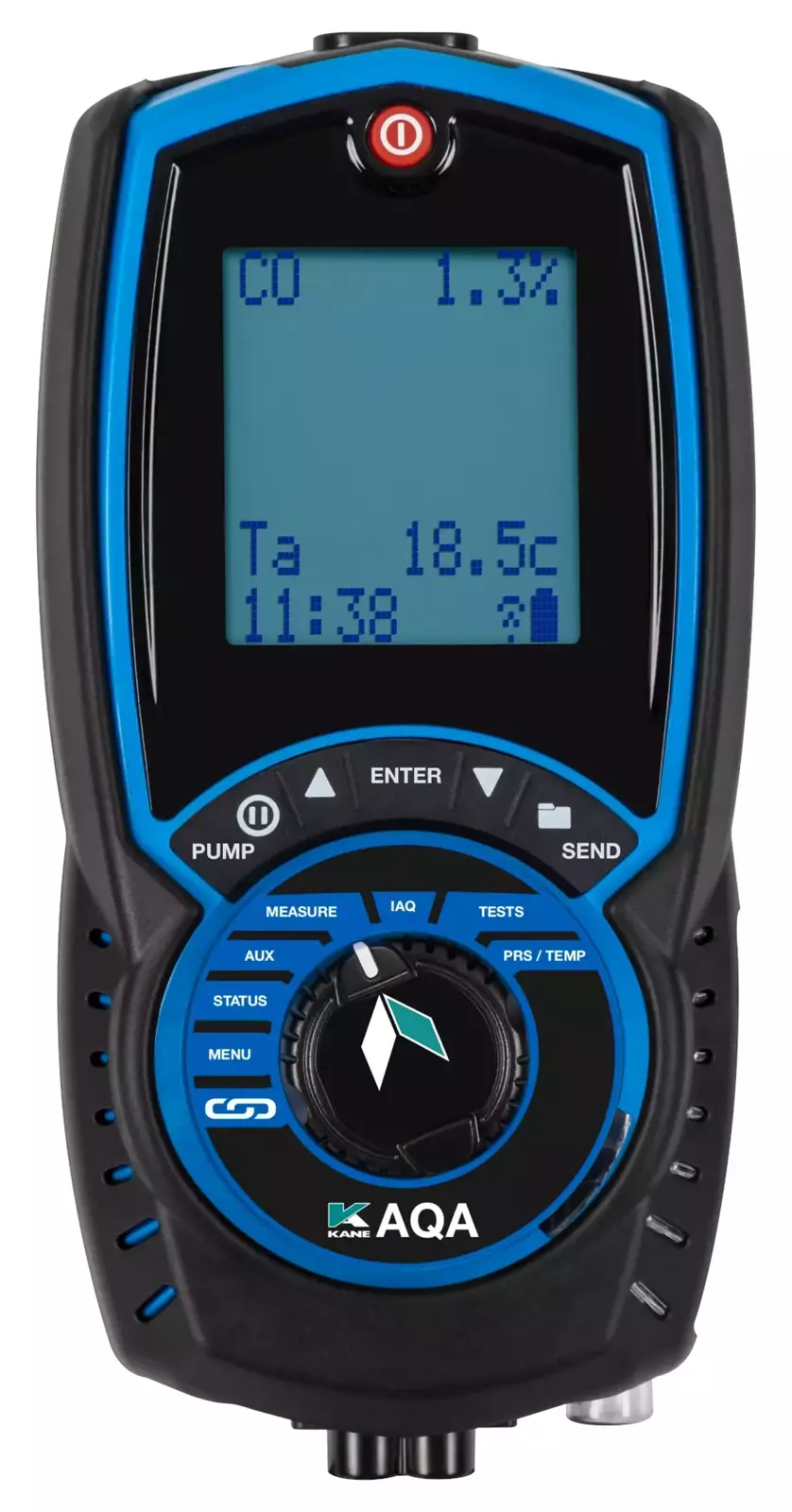

KANE-AQA Handheld IAQ analyser for up to 4 gases KANE-AQA Handheld IAQ analyser for up to 4 gases KANE
Applications
Boiler & Heat Pump flow & return temperatures
Commercial premises IAQ, airflow & humidity
Room CO tests - up to 4 simultaneously
Measures
CO2 0-9999ppm
CO 0-2000ppm or 10000ppm H2 compensation
NO 0-600ppm
O2 0-21%
Differential temperature -20 to +1350°C - with suitable probes
Differential pressure -80 to +80mBar
Air flow 1.1 – 20m/s with KANE-DTHA2
Temperature -20 - +50°C with KANE-DTHA2
RH 0.1 – 99% with KANE-DTHA2
Room CO 0-999ppm with optional KANE79 CO monitor
Box Contents
KANE-DTHA2 anemometer
20128 extender
USB1 charger
14102/2 large carry bag
Code: KANE
Applications
Boiler & Heat Pump flow & return temperatures
Commercial premises IAQ, airflow...
KANE-AQA2 KANE-AQA2 KANE-AQA2
KANE-AQA3 KANE-AQA3 KANE-AQA3

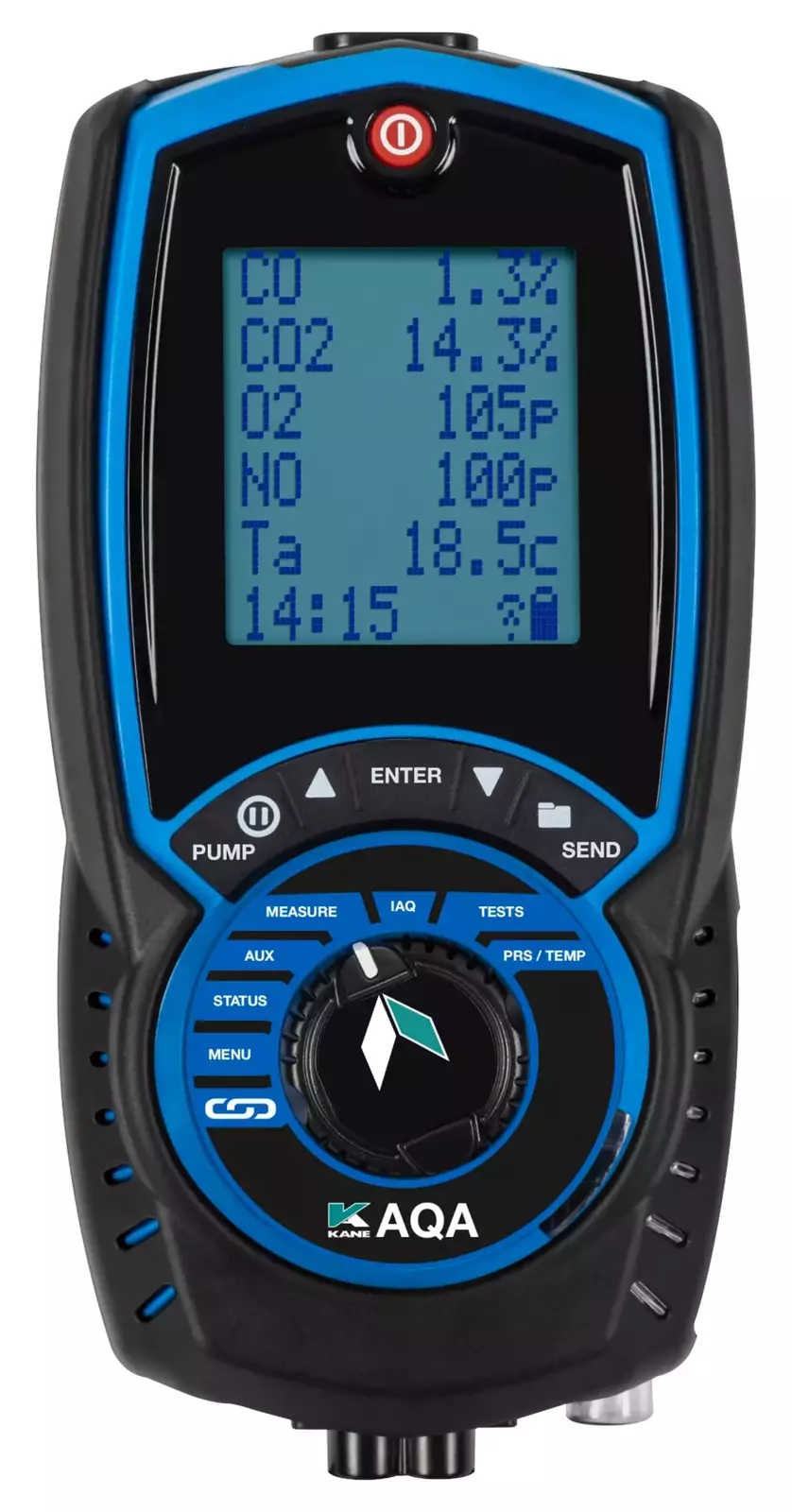

KANE-AQA4 KANE-AQA4 KANE-AQA4

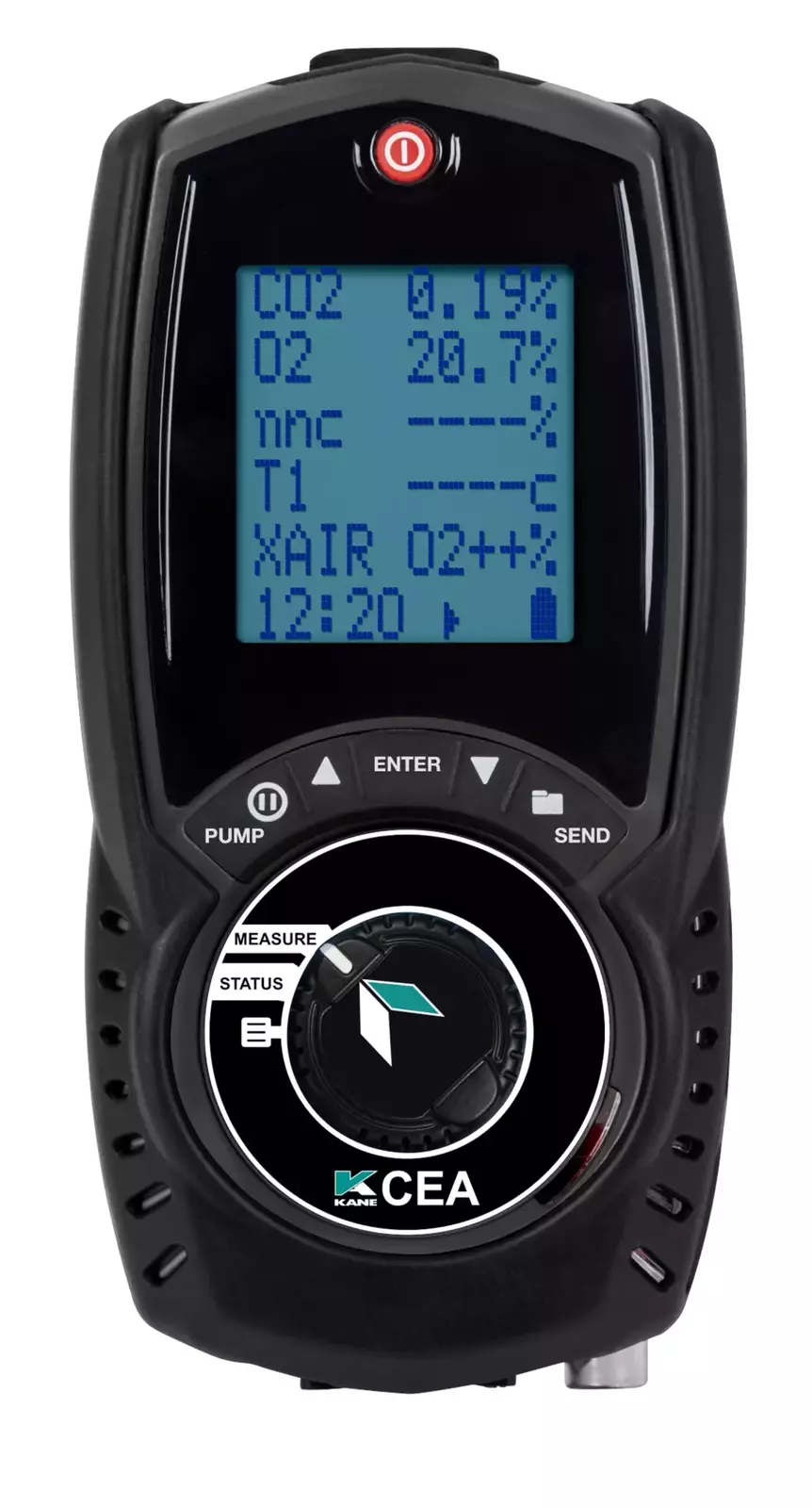

KANE-CEA Combustion Efficiency Analyser KANE-CEA Combustion Efficiency Analyser KANE
Measures
CO2 to 20%
Flue temperature to 600°C
Calculates
O2, combustion efficiency & excess air
Net temperature
Fuel Types
Natural Gas, LPG & Biogas
Propane & Butane
Light & Heavy Oil
Coke, Coal & Wood pellets
Box Contents
Boiler Efficiency Analyser supplied with SM50056 high capacity water trap & filter, CP2 probe, 3 x AA rechargeable batteries, USB1 charger & MSC00237 protective pouch
Code: KANE
Measures
CO2 to 20%
Flue temperature to 600°C
...

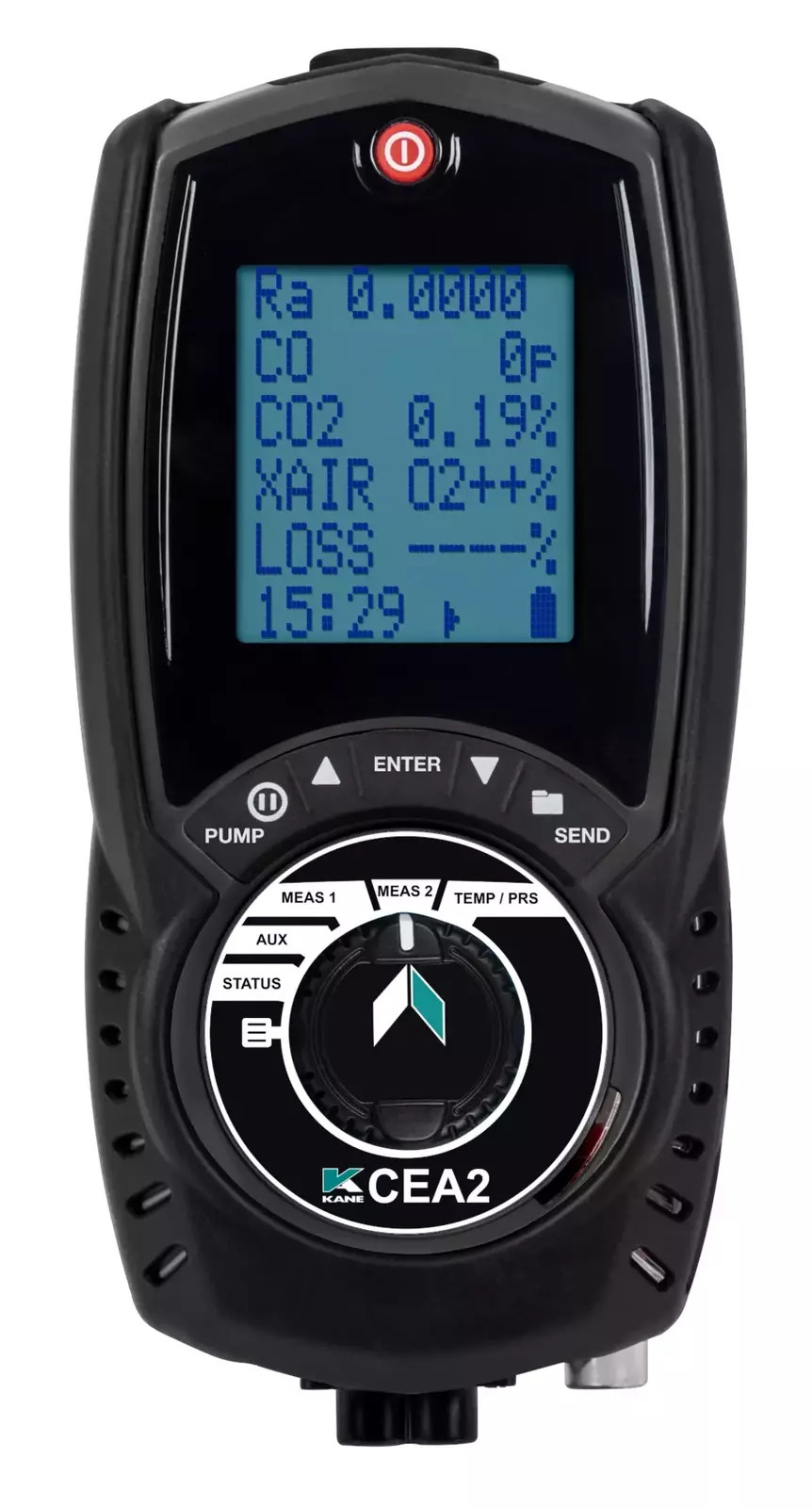

KANE-CEA2 Combustion Efficiency Analyser with CO KANE-CEA2 Combustion Efficiency Analyser with CO KANE-CEA2
Measures
CO2 to 20%
Flue temperature to 600°C
Calculates
O2, combustion efficiency & excess air
Net temperature
Fuel Types
Natural Gas, LPG & Biogas
Propane & Butane
Light & Heavy Oil
Coke, Coal & Wood pellets
Box Contents
Boiler Efficiency Analyser supplied with SM50056 high capacity water trap & filter, CP2 probe, 3 x AA rechargeable batteries, USB1 charger & MSC00237 protective pouch
Code: KANE-CEA2
Measures
CO2 to 20%
Flue temperature to 600°C
...

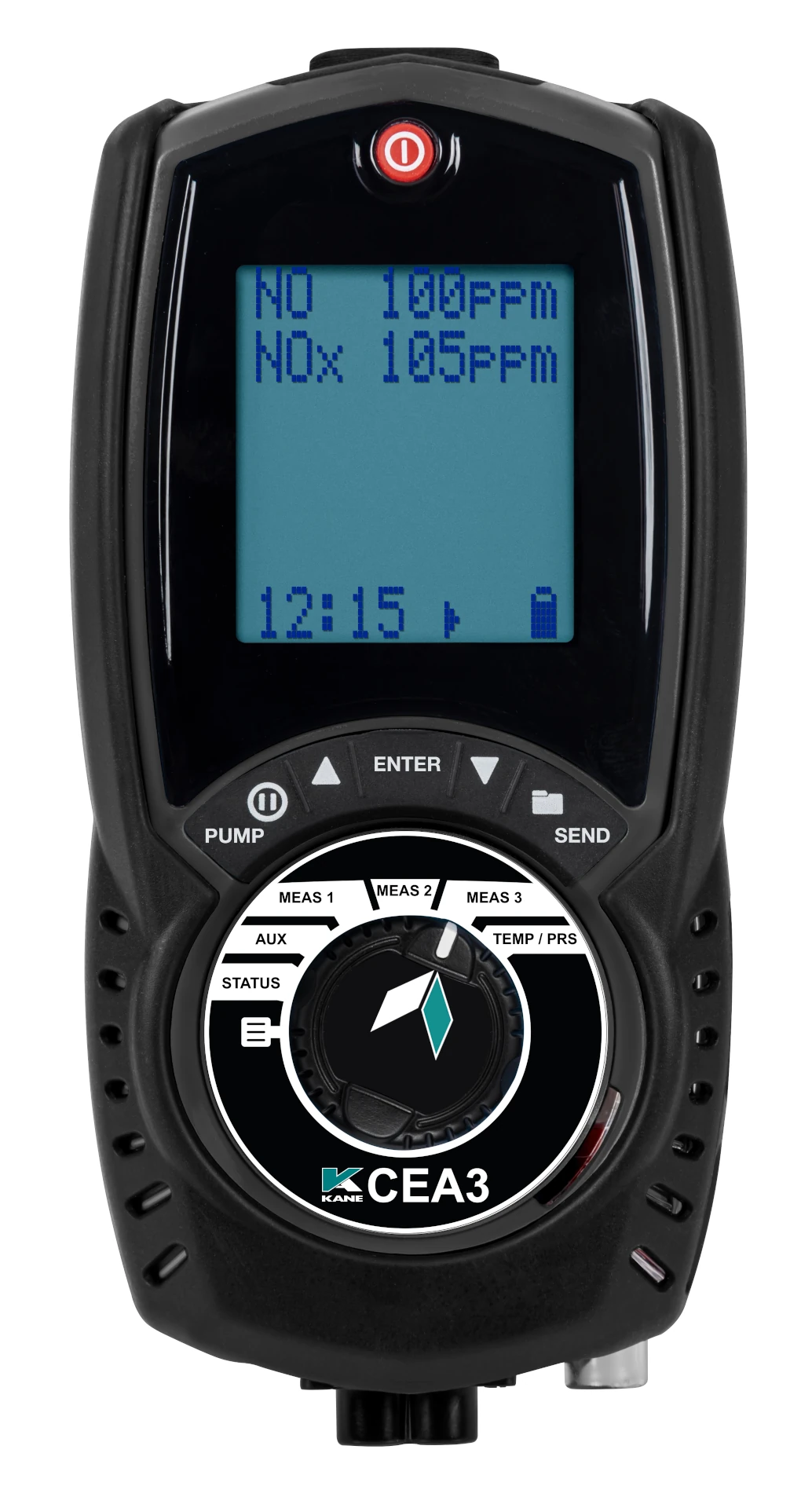

KANE-CEA3 Combustion Efficiency Analyser with CO and NO KANE-CEA3 Combustion Efficiency Analyser with CO and NO KANE-CEA3
Measures
CO2 to 20%
Flue temperature to 600°C
CO to 10,000pm with H2 compensation & over range protection
NO to 600ppm - KANE-CEA3
Pressure to 160mBar
Calculates
O2, combustion efficiency & excess air
Net temperature
CO / CO2 ratio
NOx - KANE-CEA3
Fuel Types
Natural Gas, LPG & Biogas
Propane & Butane
Light & Heavy Oil
Coke, Coal & Wood pellets
Box Contents
Boiler Efficiency Analyser supplied with SM50056 high capacity water trap & filter, CP2 probe, 3 x AA rechargeable batteries, USB1 charger & MSC00237 protective pouch
Code: KANE-CEA3
Measures
CO2 to 20%
Flue temperature to 600°C
CO to 10,000pm with H2 compensation & over ...

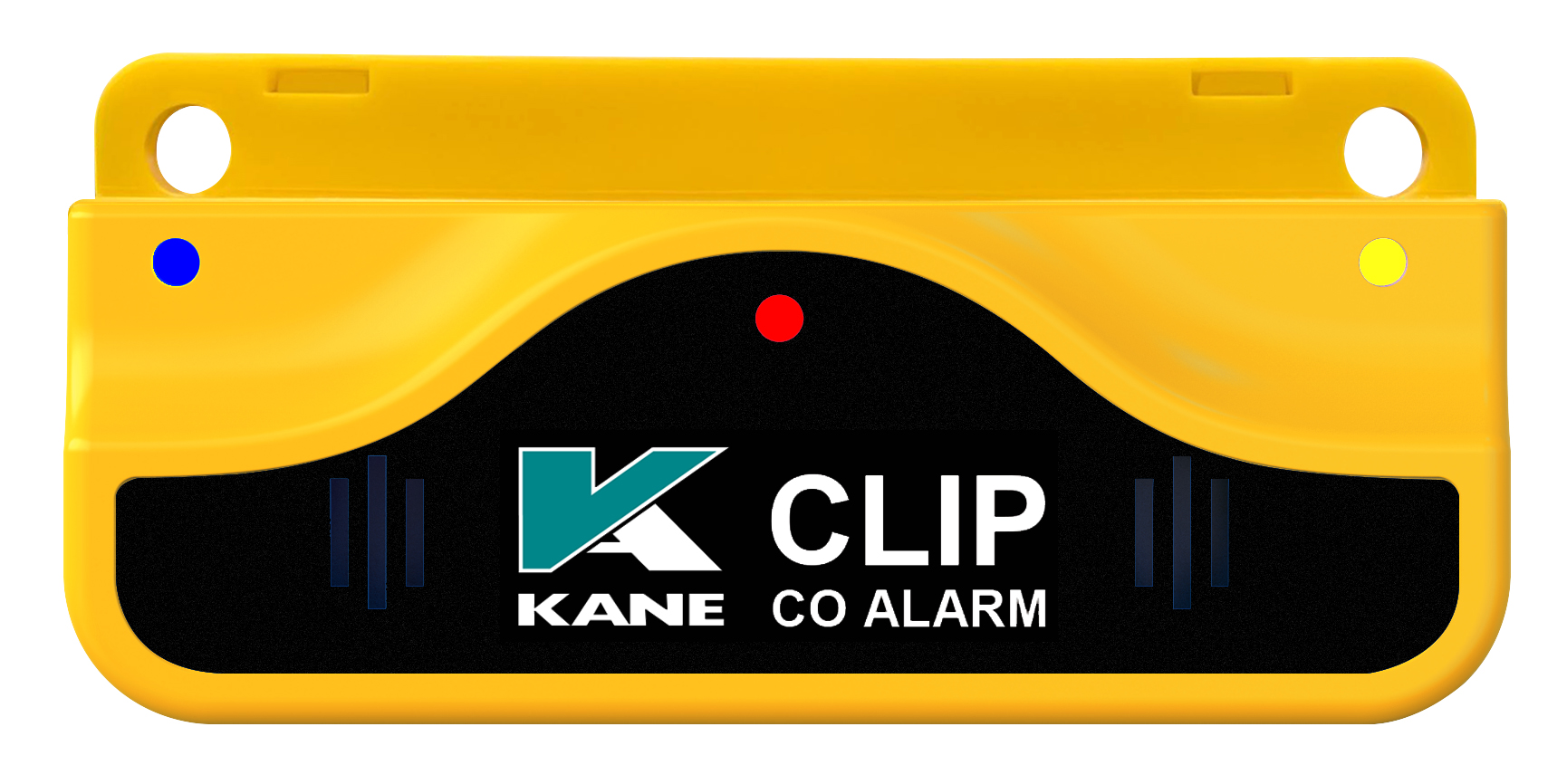

KANE-CLIP Personal CO Alarm KANE-CLIP Personal CO Alarm KANE

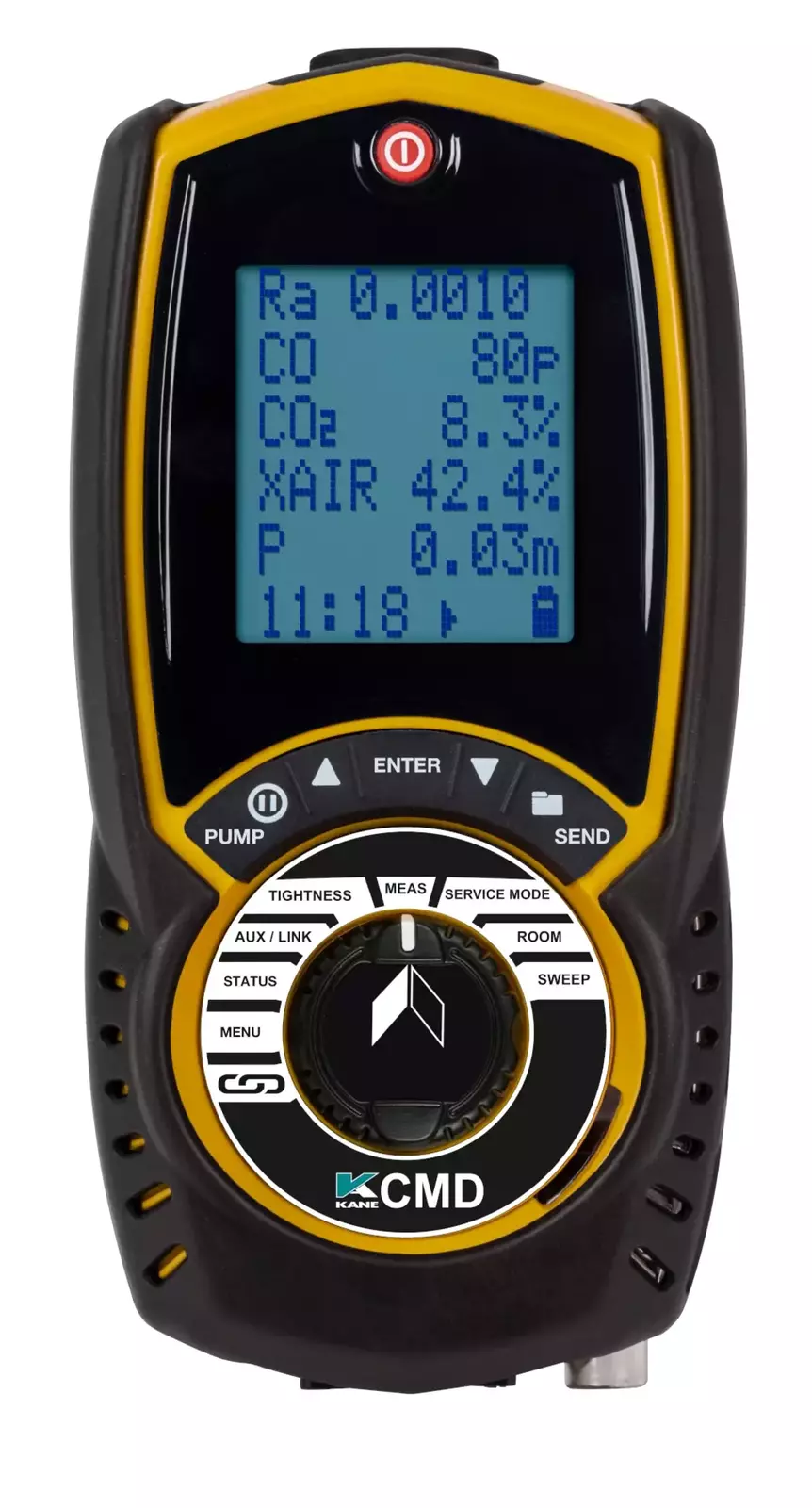

KANE-CMD Appliance & Room CO Migration Analyser KANE-CMD Appliance & Room CO Migration Analyser KANE
Applications
BS7967 2 minute appliance sweep test
CMDDA 5, 15 & 30 minute appliance & room CO tests
Fast track multiple room tests with optional KANE-COL
Simultaneous appliance & room CO tests
Measures
Single input pressure to 1psi, -80 to +80mBar
CO to 10,000pm with over range protection
O2 to 20.9%
Ambient CO2 to 9999ppm
Temperature -20 to +1350ºC
Combined appliance & room CO tests with up to 4 optional KANE-COL CO monitors
Indoor Air Quality with optional KANE-DTHA2 anemometer
Box Contents
KANE-CMD
Supplied with CP2 combustion probe, 3 x AA batteries, USB charger & MSC00237 protective case
KANE UKAS standard
Independently tested by TUV SUD to EN50379
Use for BS7967 & TB143
Code: KANE
Applications
BS7967 2 minute appliance sweep test
CMDDA 5, 15 & 30 minute appliance & room ...

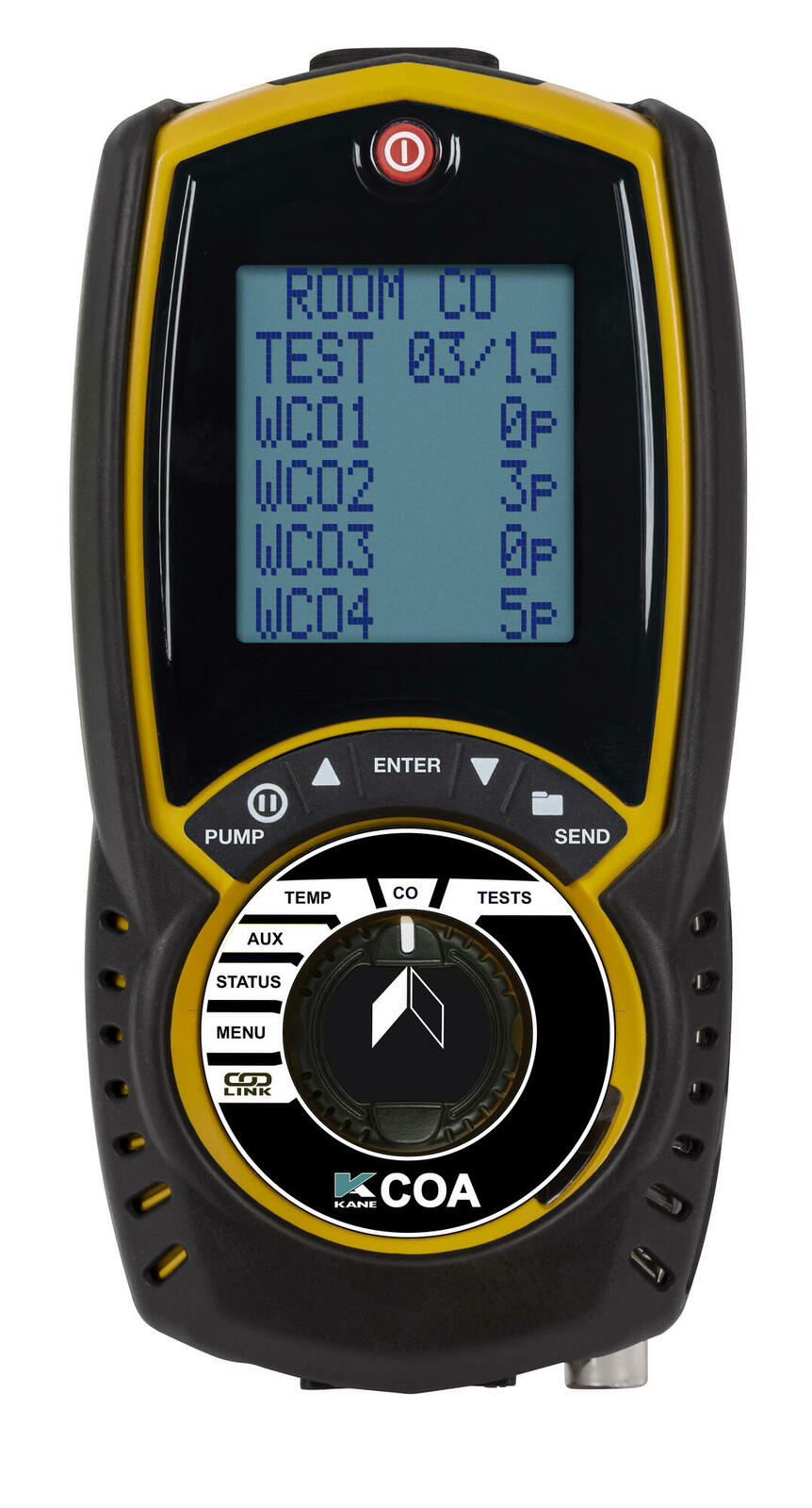

KANE-COA Appliance CO tester with KANE LINK KANE-COA Appliance CO tester with KANE LINK KANE
Applications
Domestic & commercial boilers & water heaters
Commercial cookers, grills & ovens
Appliance Sweep Safety test finds CO leaks
Home Safety tests
Workplace Air Quality tests
Measures
CO to 2,000ppm with 4,000pm over range protection
Combined appliance & room CO tests with optional KANE-COL CO monitor
Temperature -20 to +1350ºC with optional probe
Indoor Air Quality with optional KANE-DTHA2 anemometer
Box Contents
Supplied with SGASP sampling probe, 3 x AA batteries, USB charger & MSC00237 protective case
Code: KANE
Applications
Domestic & commercial boilers & water heaters
Commercial cookers, grills &...

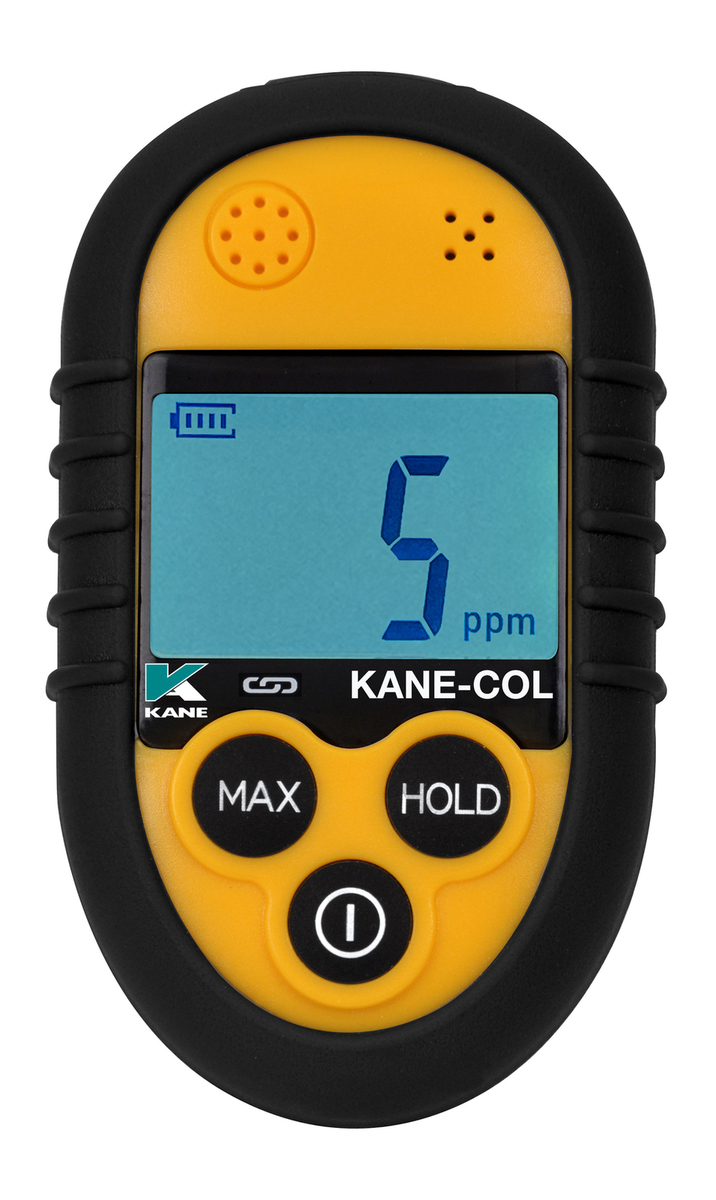

KANE-COL Wireless Ambient CO Monitor & Logger KANE-COL Wireless Ambient CO Monitor & Logger KANE

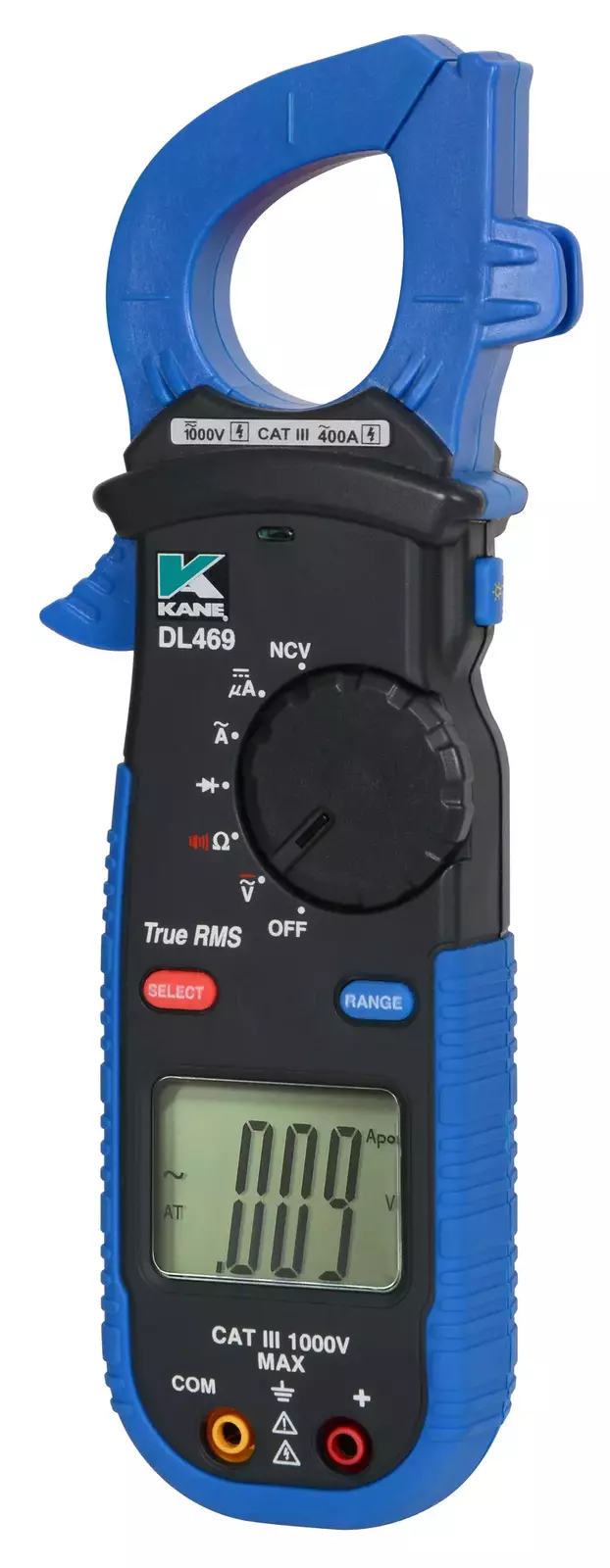

KANE-DL469 AC 400A TRMS Clamp Meter KANE-DL469 AC 400A TRMS Clamp Meter KANE-DL469

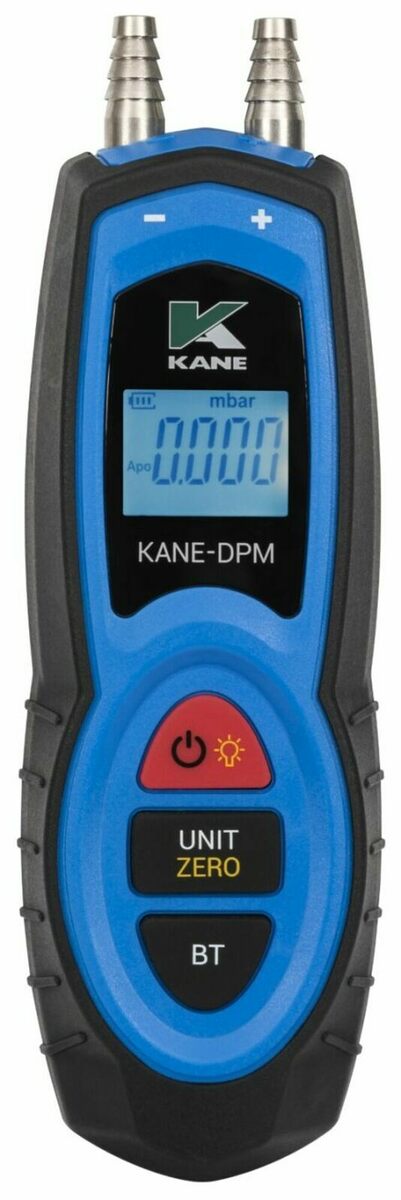

KANE-DPM Differential Pressure Meter KANE-DPM Differential Pressure Meter KANE
Box Contents
Supplied with HARHOSE pressure hose, 3 AAA alkaline batteries & MSC00238 protective case
Code: KANE
Box Contents
Supplied with HARHOSE pressure hose, 3 AAA alkaline batteries & MSC00238 protective case...

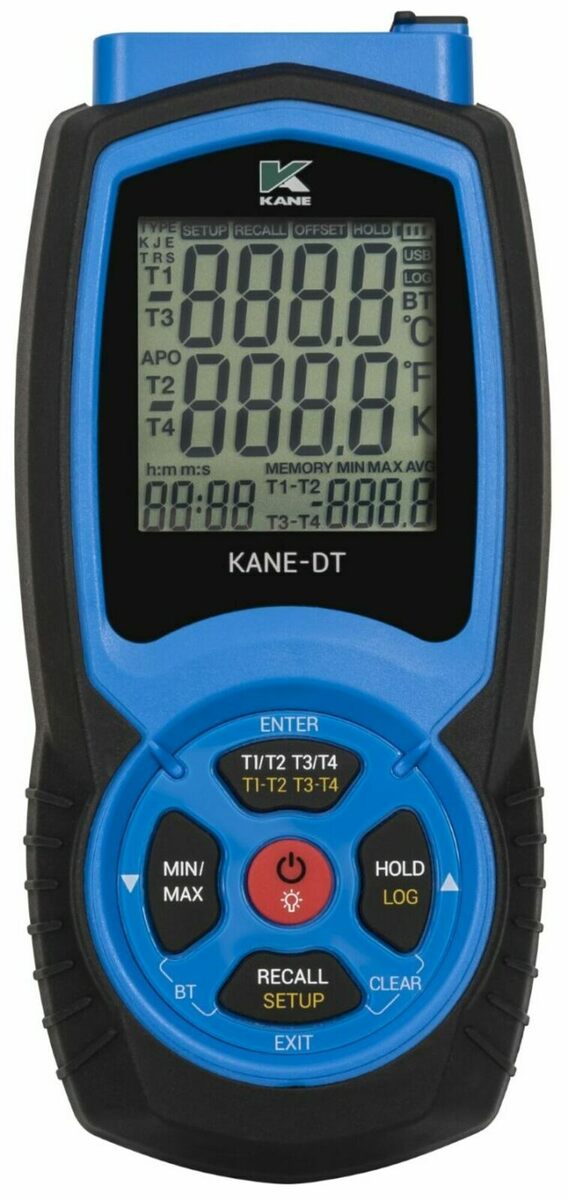

KANE-DT2 Digital Differential Thermometer KANE-DT2 Digital Differential Thermometer KANE-DT2
Applications
Test boiler & heat pump flow & return, A/C & refrigeration systems
Check cold water inlet & hot water outlet temperatures
Code: KANE-DT2
Applications
Test boiler & heat pump flow & return, A/C & refrigeration systems
Check c...
