Portable Gas Conditioning

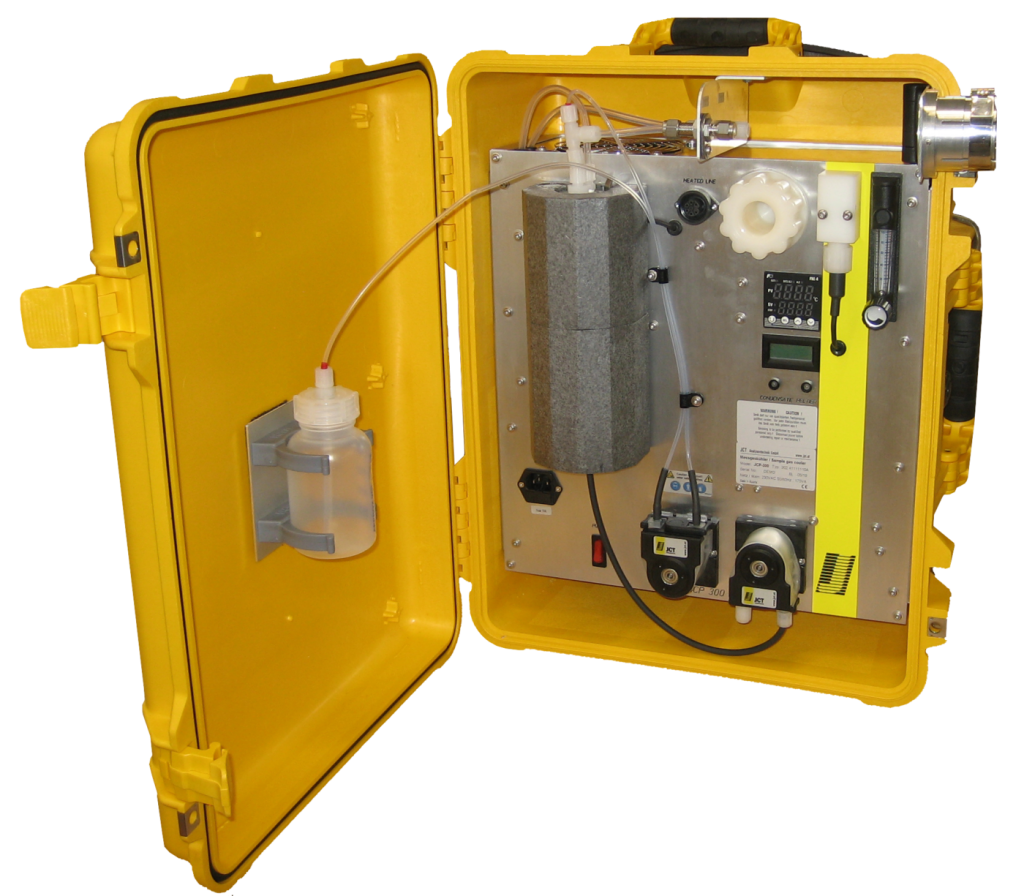

JCP-300 JCP-300 Applications Mobile extractive gas analysis Emission and process monitoring Continuous sample gas conditioning of humid process gases Continuous drying of sample gas to a precise, low and constant outlet dew point Minimises water vapour cross-sensitivities and volumetric errors Applications   Mobile extractive gas analysis Emission and process monitoring Continuous sample gas conditioning of humid process gases Continuous drying of the sample gas to a precise, low and constant outlet dew point Minimises water vapour cross-sensitivities and volumetric errors Benefits Very powerful compact complete unit with condensate removal High flow rates of up to 250 Nl/hr Very low wash-out ratios, even at high water vapour concentrations in the sample gas High inlet dew points up to 80 °C are possible Reliable condensate separation even at very high ambient temperatures up to 50 °C Extremely precise, long-term stable dew point even under varying loads Maximum operational safety Low maintenance operation Easy to maintain design Features New, powerful, modular designed compact solution New heat exchanger JHEX-4 Intelligent digital control electronic Digital temperature display Up to an ambient temperature of 50 °C (JCP-310) applicable Integrated condensate pump Integrated sample gas pump Integrated flow control Integrated fine dust filter Integrated condensate monitoring Temperature controller for heated sample line Visual alerting via LEDs and digital display Self-monitoring with deactivation of the sample pump in case of alarm Ready for operation within less than 15 minutes

JPES JPES Portable Gas Sampling Probe with JHSo Heated Sample Line Applications For mobile extractive gas analysis For emission and process monitoring For mobile representative gas sampling in dust and humidity containing processes For removal of dust from the sample gas stream For condensate free transport from the sampling point to the conditioning system or the analyser Especially designed for: stack testers authorities (QAL 2) mobile back-up CEMS Portable Gas Sampling Probe with JHSo Heated Sample Line Applications For mobile extractive gas analysis For emission and process monitoring For mobile representative gas sampling in dust and humidity-containing processes For the removal of dust from the sample gas stream For condensate-free transport from the sampling point to the conditioning system or the analyser Especially designed for: stack testers authorities (QAL 2) mobile back-up CEMS Benefits Lightweight and compact Quick and very easy start-up Very easy operation Very easy and quick change of the filter element without tools Complete, ready for use set, no additional equipment necessary No separate temperature controller necessary Only one power connection is necessary (also with the heated sampling tube JBER) No loose cables Features Robust, compact transport case with all necessary parts for mobile gas sampling: gas sampling probe, heated sample line, sampling tubes, filter elements, calibration gas connection, mounting chains, … Compact gas sampling probe with operation and temperature status LEDs Homogeneous heating to 180 °C without cold spots Gas sampling probe with self-limiting PTC heating element Calibration gas connection at the gas sampling probe Heated sample line JHSo with integrated temperature controller and operation status LED All electric connection cables are integrated in the heated sample line Exclusively Quick-On connectors for all gas connections Flexible, light weight and robust heated sample line Comprehensive list of options for various applications
