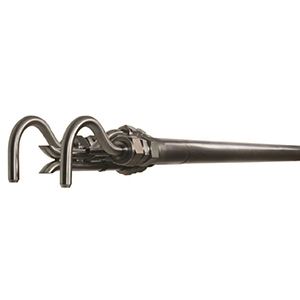

A600 Isokinetic Probe
Description
The Apex Instruments Method 201A heated probe for sampling particulate matter. Method 5 probes are used in combination with Particle Measurement Cyclone Kits to create Method 201A Probes. Multiple fitting arrangements and cyclone assemblies are available.
Features a 1-inch diameter sheath constructed from corrosion-resistant stainless steel, modular offset 3/8-inch pitot tip, 1/4-inch stainless steel quick connects, type-K thermocouples for stack and probe temperature, probe heater, orsat line, and a small parts package. Standard lengths are 5 feet to 12 feet. Longer lengths and custom orders are available by request. Probes are ordered according to nominal (liner length). Effective length is one foot less than the nominal length. Order probe liners separately.
Description
The Apex Instruments Method 201A heated probe for sampling particulate matter. Method 5 probes are used in combination with Particle Measurement Cyclone Kits to create Method 201A Probes. Multiple fitting arrangements and cyclone assemblies are available.
Features a 1-inch diameter sheath constructed from corrosion-resistant stainless steel, modular offset 3/8-inch pitot tip, 1/4-inch stainless steel quick connects, type-K thermocouples for stack and probe temperature, probe heater, orsat line, and a small parts package. Standard lengths are 5 feet to 12 feet. Longer lengths and custom orders are available by request. Probes are ordered according to nominal (liner length). Effective length is one foot less than the nominal length. Order probe liners separately.
No downloads available for this product.
